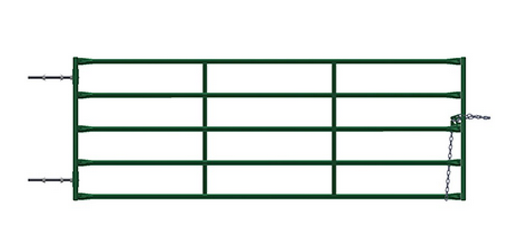

10' Handy Gate

The handy gate is designed for low pressure uses such as acreage gates. These gates are available in the following lengths: 4′, 6′, 8′, 10′, 12′, 14′ 16, 18, 20′.

• The tubing is 1 1/2″ OD 16 gauge tubing
• The verticals are coned to remove sharp edges
• The inside opening between each of the five horizontal bars is 8 3/8”
• The horizontals are reinforced with 1.25” x 3/16” flat bar welded on alternating faces of the gate.

Each gate under 16' comes with two 13” x 3/4” All-thread hinges. Each gate 16' and longer comes with two 13" x 1" All-Thread hinges. The hinges are secured to the gate for shipping with a 1/4″ Hex-head self-drill screw. Each gate includes 48” of 1/4” zinc plated chain and a no-slip chain latch.
